Sale!

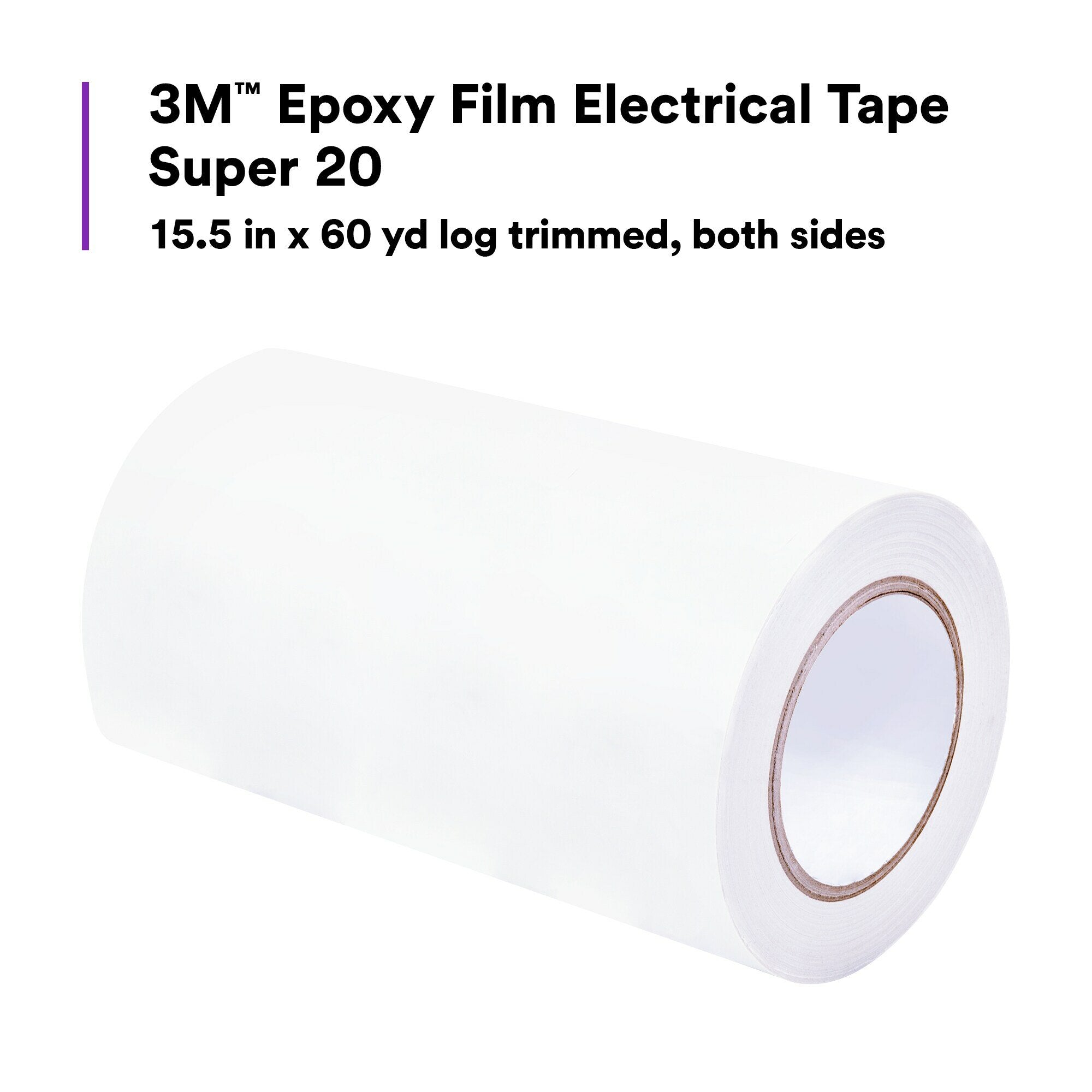

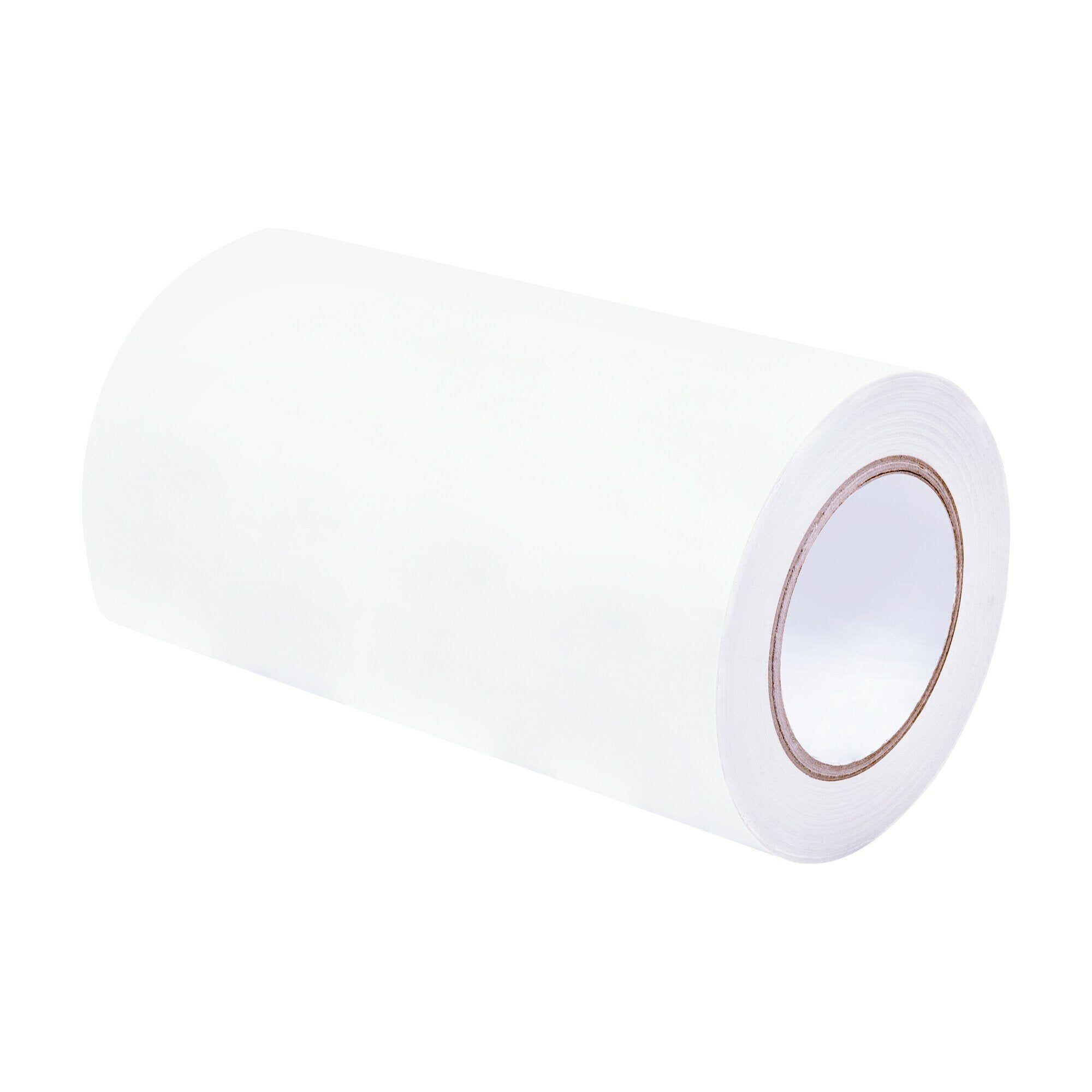

3M Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed,both sides

Original price was: $1,135.99.Current price is: $227.20.

SKU: US-7066164920343 Categories: ,

Description

3M Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed,both sides

General Information
Brand
3M™
Adhesive Type
Acrylic
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Backing (Carrier) Thickness (Metric)
0.089 mm
Maximum Operating Temperature (Celsius)
155 Degree Celsius
Minimum Operating Temperature (Celsius)
0 Degree Celsius
Overall Length (Imperial)
60 yd
Overall Length (Metric)
55 m
Overall Width (Imperial)
15.512 in
Overall Width (Metric)
394 mm
Tensile Strength (Metric)
79 N/cm
Total Tape Thickness Without Liner (Imperial)
5 mil
Total Tape Thickness Without Liner (Metric)
0.127 mm
Overall Length Imperial
60.0
Width
0.17 yd
0.16 m
Height
0.19 yd
0.17 m
Length
0.54 yd
0.49 m
Volume
813.32 cubic inch
13328 cm3
Weight
10 lb
4.54 kg
Other Details
Dielectric Strength
8000 V
Electrolytic Corrosion Factor
1.0
Elongation At Break
120.0 %
Insulation Resistance
1 x 10^6 megohms
Usage Information
Application
Insulation
Material and Composition
Backing (Carrier) Material
Epoxy
Shelf Life
5 Year
Backing Carrier Material
Epoxy
Color and Appearance
Product Color
Cream
Certifications and Standards
Specifications Met
UL 510
