Sale!

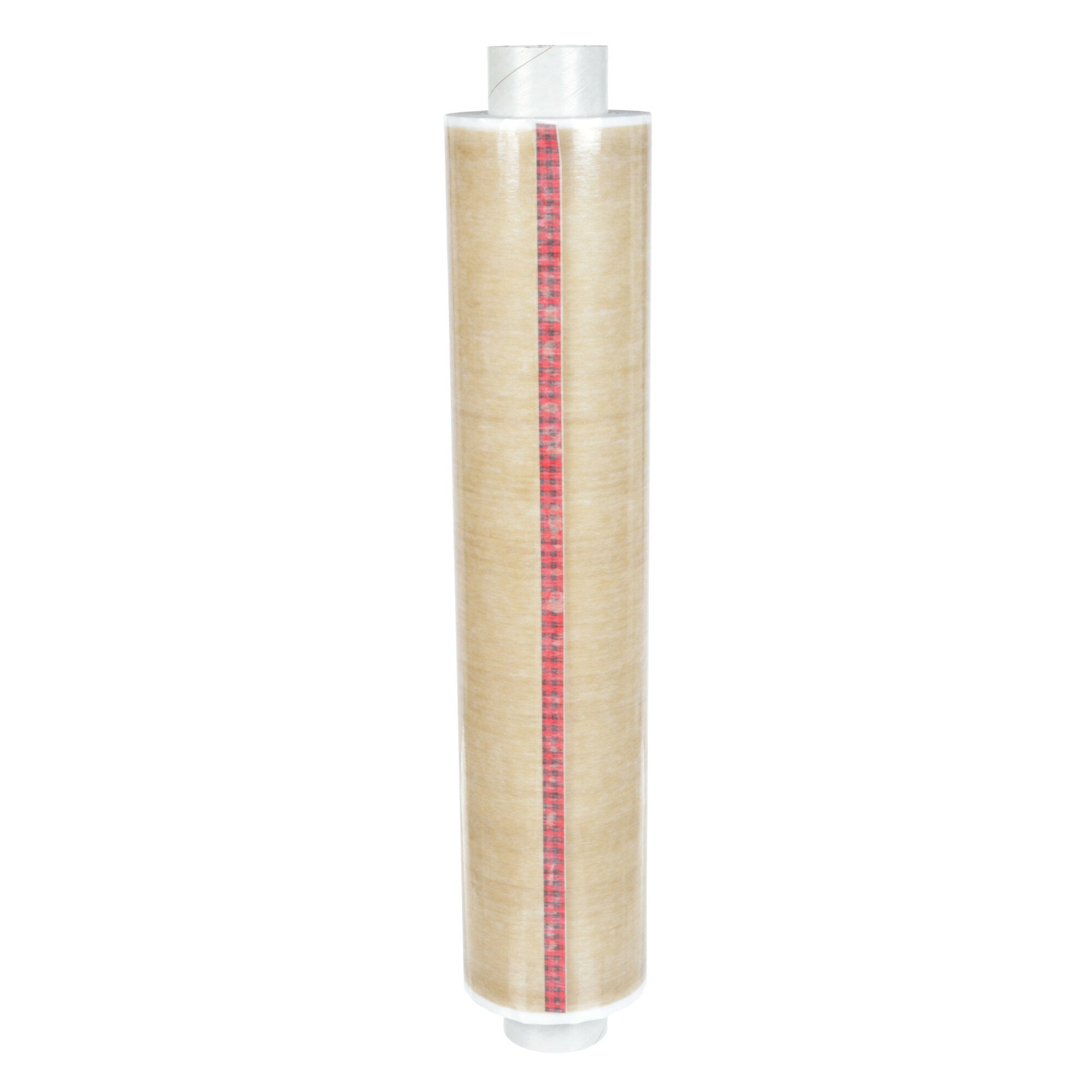

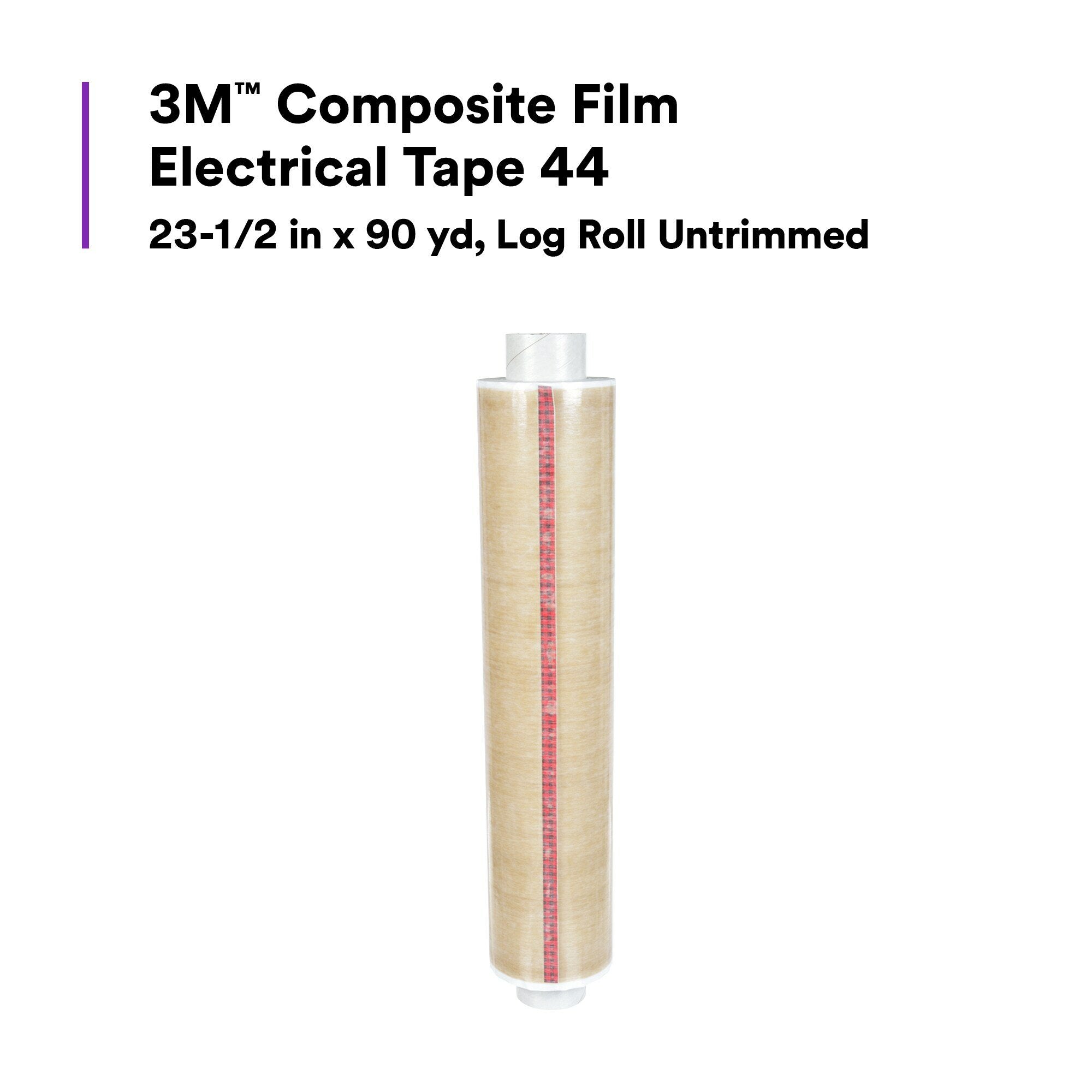

3M Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log RollUntrimmed

Original price was: $445.99.Current price is: $89.20.

SKU: US-7066104692759 Categories: ,

Description

3M Composite Film Electrical Tape 44, 23-1/2 in x 90 yd, Log RollUntrimmed

General Information
Brand
3M™
Adhesive Type
Thermosetting Rubber
Country Of Origin
United States
Sold As
Case
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Backing (Carrier) Thickness (Metric)
0.089 mm
Maximum Operating Temperature (Celsius)
130 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
266 Degree Fahrenheit
Minimum Operating Temperature (Celsius)
0 Degree Celsius
Minimum Operating Temperature (Fahrenheit)
32 Degree Fahrenheit
Overall Length (Imperial)
90 yd
Overall Length (Metric)
82.296 m
Overall Width (Imperial)
23.5 in
Overall Width (Metric)
596.9 mm
Total Tape Thickness Without Liner (Imperial)
5.25 mil
Total Tape Thickness Without Liner (Metric)
0.13 mm
Overall Length Imperial
90.0
Width
0.23 yd
0.21 m
Height
0.25 yd
0.23 m
Length
0.88 yd
0.81 m
Volume
2388.93 cubic inch
39147.57 cm3
Weight
20.6 lb
9.34 kg
Other Details
Dielectric Strength
5500 V
Electrolytic Corrosion Factor
1.0
Elongation At Break
50.0 %
Insulation Resistance
> 10^6 megohms
Usage Information
Application
Insulation
Material and Composition
Backing (Carrier) Material
Polyester
Shelf Life
5 Year
Backing Carrier Material
Polyester
Certifications and Standards
Specifications Met
UL 510
